| Products Show |

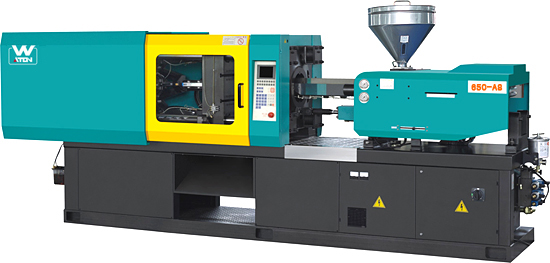

| Product Name:WTI650 [Order It!] |
| Category:Injection Machine |
| Pic: |
 |
WTI90 WTI130 WTI160 WTI210 WTI250
WTI300 WTI320 WTI400 WTI500 WTI650 |
| About This Product: |
|
WTI650energy-saving machine |
|
DESCRIPTION |
WTI650A8 |
|
International recognized model |
2856/650 |
|
Screw model |
A |
B |
C |
|
Shot volume(cm3) |
2160 |
2734 |
3376 |
|
Shot weight (g)ps |
1966 |
2488 |
3072 |
|
66.6 |
87.1 |
107.5 |
|
Screw diameter(mm) |
80 |
90 |
100 |
|
Injection pressure(mpa) |
215 |
170 |
138 |
|
Screw L:D ratio |
21:1 |
21:1 |
19.5:1 |
|
Screw stroke(mm) |
430 |
|
Screw rotate speed(r/min) |
0-125 |
|
CLAMPING UNIT |
|
Clamping force (kn) |
6500 |
|
Opening stroke(mm) |
920 |
|
Platen size(mm*mm) |
1320*1290 |
|
Space between tie bars (mm*mm) |
930*900 |
|
Moldthickness(Min-Max)(mm) |
350-910 |
|
Platen Mix stroke(mm) |
1830 |
|
Ejection stroke(mm) |
265 |
|
Ejection force(kn) |
182 |
|
POWER UNIT |
|
Hydraulic system pressure(mpa) |
17.5 |
|
Pump motor(kw) |
55 |
|
Heating power(kw) |
35.4 |
38.3 |
38.3 |
|
Number of temp.control |
6+(nozzle) |
|
OTHERS |
|
Cycle time (sec) |
6 |
|
Oil tank capacity (L) |
1500 |
|
Machine dimensions(m*m*m) |
9.22*1.9*2.3 |
|
Machine weight (kg) |
36000 | |
|
|
|
