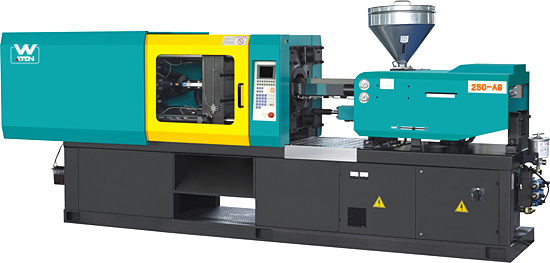

| Product Name:WTI250 [Order It!] |
| Category:Injection Machine |
| Pic: |
 |
WTI90 WTI130 WTI160 WTI210 WTI250
WTI300 WTI320 WTI400 WTI500 WTI650 |
| About This Product: |
|
WTI250energy-saving machine |
|
DESCRIPTION |
WTI250A8 |
|
International recognized model |
1078/250 |
|
Screw model |
A |
B |
C |
|
Shot volume(cm3) |
510 |
687 |
863 |
|
Shot weight (g)ps |
464 |
625 |
785 |
|
16.2 |
21.8 |
27.4 |
|
Screw diameter(mm) |
50 |
58 |
65 |
|
Injection pressure(mpa) |
224 |
166 |
132 |
|
Screw L:D ratio |
21:1 |
21:1 |
18.7:1 |
|
Screw stroke(mm) |
260 |
|
Screw rotate speed(r/min) |
0-180 |
|
CLAMPING UNIT |
|
Clamping force (kn) |
2500 |
|
Opening stroke(mm) |
520 |
|
Platen size(mm*mm) |
820X790 |
|
Space between tie bars (mm*mm) |
560X530 |
|
Moldthickness(Min-Max)(mm) |
200-580 |
|
Platen Mix stroke(mm) |
1100 |
|
Ejection stroke(mm) |
150 |
|
Ejection force(kn) |
67 |
|
POWER UNIT |
|
Hydraulic system pressure(mpa) |
17.5 |
|
Pump motor(kw) |
22 |
|
Heating power(kw) |
15 |
16 |
16 |
|
Number of temp.control |
5+(nozzle) |
|
OTHERS |
|
Cycle time (sec) |
4.8 |
|
Oil tank capacity (L) |
380 |
|
Machine dimensions(m*m*m) |
6.57X1.6X2.15 |
|
Machine weight (kg) |
8000 | |
|
|
|
