| BS Large Bottle Making Machine |
|
|

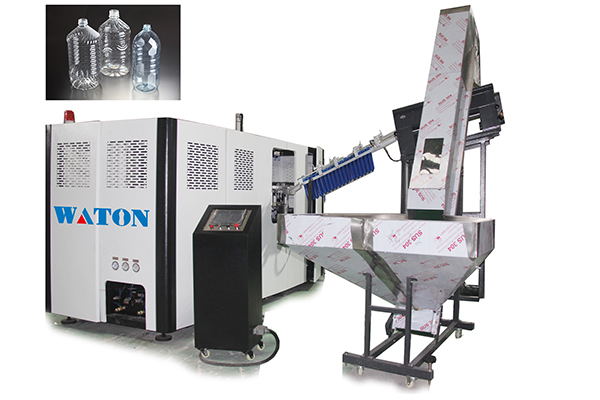

BS Series Large Bottle Servo Automatic Blow Molding Machine
(Servo Automatic models for large bottles 5L ~ 20L)
Features£º
- Servo controls Clamping System, precisely and stable action, quiet motion.
- Unique structure of pitch changing. Preforms are close to each other when heating, preform distances are enlarged when entering Blow Mold. This design makes machine compact, with shorter oven and save energy.

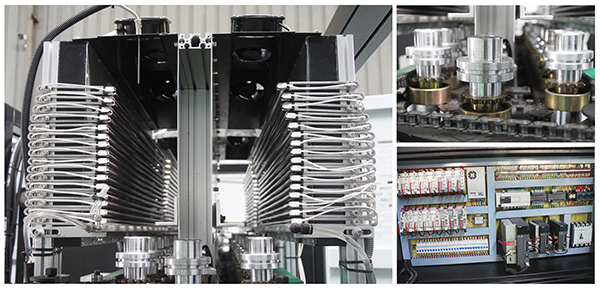

- Advanced high frequency Infrared Heaters upgrade the heating efficiency 30%-50%. Each layer heaters controlled separately.
- Optional Air recycle system can recycle high pressure air to be low pressure air resource, which reduce compressor working and save energy.
- Machine is easy to install and operate.
ITEMS |
|
Machine Models |
Unit |
BS5-2 |
BS-10L-2 |
BS-20L-1 |
BS-20L-2 |
Molding |
Cavity Pitch |
mm |
variable |
Cavity Qty. |
Cav. |
2 |
2 |
1 |
2 |
Bottles |
Max. Bottle Volume |
L |
5L |
12L |
20L |
20L |
Max. Neck size |
mm |
60 |
80 |
80 |
80 |
Max. Bottle Diameter |
mm |
200 |
210 |
290 |
290 |
Max. Bottle Height |
mm |
350 |
430 |
480 |
480 |
Theoretical Output |
BPH |
1,200-1,600 |
1,000-1,500 |
500-600 |
1000-1200 |
POWER |
Max Heating Power |
Kw |
66 |
70 |
53 |
80 |
Install Power |
Kw |
68 |
74 |
55 |
86 |
Air Supply |
Blowing Pressure |
Mpa |
2.5 ~ 4.0 |
2.5 ~ 4.0 |
2.5 ~ 4.0 |
2.5 ~ 4.0 |
Motion Pressure |
Mpa |
0.8 ~ 1.2 |
0.8 ~ 1.2 |
0.8 ~ 1.2 |
0.8 ~ 1.2 |
Machine size |
Main Machine Size |
M |
3.5 X 2.2 X 2.45 |
5.0 X 1.8 X 2.1 |
3.7 X 1.5 X 2.1 |
5.0 X 1.8 X 2.1 |
Preform-Unscrambler Size |
M |
1.1 X 0.8 X 2.3 |
1.4 X 0.8 X 2.5 |
1.4 X 0.8 X 2.5 |
1.4 X 0.8 X 2.5 |
Auto-loader Size |
M |
1.16 X 2.4 X 2.83 |
1.5 X 3.0 X 3.5 |
1.5 X 3.0 X 3.5 |
1.5 X 3.0 X 3.5 |
Machine Weight |
KGS |
4,000 |
5,000 |
4,000 |
5,500 |
|
|
