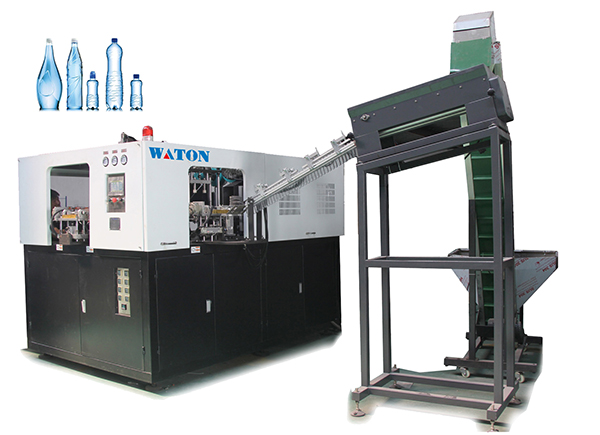

ECO Automatic Blowing Machine

ECO Series Fully Automatic Blowing Machine
(economic Auto model for bottles <2L)


Features:

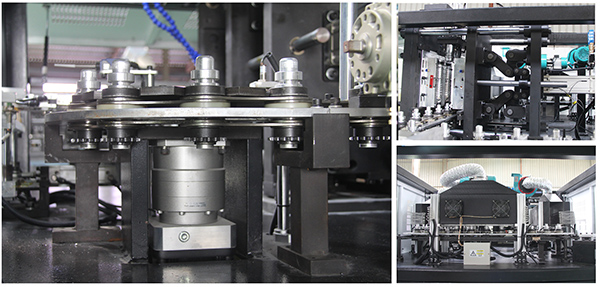

  1. Servo control: Preform Transfer System.
  2. Servo system features speedy, accurately, stably, flexibly and energy efficient.
  3. Wide range of application as various PET bottles under 2L for water, beverage, cosmetics, etc.
  4. Double Crank Clamping System plus High-pressure Compensation, strong clamping force.
  5. Main rail adopted high quality stainless steel, precision 0.1mm, smoother movement and lower noise.
  6. Advanced high frequency Infrared Heaters upgrade the heating efficiency 30%-50%. Each layer heaters controlled separately.
  7. Mold fixed by Drawer Design. Aluminum mold changeover work can be easily done in half hour.

ITEMS

Unit

ECO-2L

ECO-2L-W

ECO-4L

ECO-6L

Theoretical Output

BPH

1,800 - 2,400

1,800 - 2,400

3,500 -4,500

5,500-6,000

Molding

Cavity Pitch

mm

114.3

130

114.3

114.3

Cavity Qty.

cav.

2

2

4

6



Bottles

Max. Bottle Volume



2L

2L

2L

2L

Neck size

mm

18 ~38

18 ~80

18 ~38

18 ~38

Max. Bottle Diameter

mm

105

120

105

105

Max. Bottle Height

mm

330

330

330

330

POWER

Max Heating Power

KW

28

28

50

75

Install Power

KW

30

30

52

78



Air Supply

Blowing Pressure

Mpa

2.5 ~ 4.0

2.5 ~ 4.0

2.5 ~ 4.0

2.5 ~ 4.0

Motion Pressure

Mpa

0.8 ~ 1.2

0.8 ~ 1.2

0.8 ~ 1.2

0.8 ~ 1.2



Machine size

Main Machine Size

M

2.92X2.0X2.25

3.5X2.0X2.25

3.6X2.0X2.3

6.0X2.3X2.3

Preform-Unscrambler Size

M

1.1X0.8X2.25

1.1X0.8X2.25

1.1X0.9X2.4

1.4X0.8X3.3

Auto-loader Size

M

0.97X2.3X2.8

0.97X2.3X2.8

0.97X2.5X3.2

1.16X1.6X3.3

Machine Weight

KGS

2,750

3,300

3,800

8,000

Due to continuously technical development, specification would be updated without prior notify.
