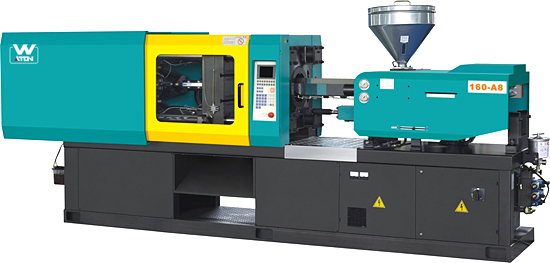

| Product Name:WTI160 [Order It!] |
| Category:Injection Machine |
| Pic: |
 |
WTI90 WTI130 WTI160 WTI210 WTI250
WTI300 WTI320 WTI400 WTI500 WTI650 |
| About This Product: |
|
WTI160energy-saving machine |
|
DESCRIPTION |
WTI160A8 |
|
International recognized model |
252/160 |
|
Screw model |
A |
B |
C |
|
Shot volume(cm3) |
277 |
318 |
392 |
|
Shot weight (g)ps |
260 |
298 |
369 |
|
9.1 |
10.5 |
12.9 |
|
Screw diameter(mm) |
42 |
45 |
50 |
|
Injection pressure(mpa) |
190 |
166 |
135 |
|
Screw L:D ratio |
20:1 |
20:1 |
18:1 |
|
Screw stroke(mm) |
200 |
|
Screw rotate speed(r/min) |
0-200 |
|
CLAMPING UNIT |
|
Clamping force (kn) |
1600 |
|
Opening stroke(mm) |
430 |
|
Platen size(mm*mm) |
680X680 |
|
Space between tie bars (mm*mm) |
460X460 |
|
Moldthickness(Min-Max)(mm) |
180-500 |
|
Platen Mix stroke(mm) |
930 |
|
Ejection stroke(mm) |
140 |
|
Ejection force(kn) |
50 |
|
POWER UNIT |
|
Hydraulic system pressure(mpa) |
17.5 |
|
Pump motor(kw) |
15 |
|
Heating power(kw) |
11.5 |
12.6 |
12.6 |
|
Number of temp.control |
4+(nozzle) |
|
OTHERS |
|
Cycle time (sec) |
2.0 |
|
Oil tank capacity (L) |
210 |
|
Machine dimensions(m*m*m) |
5.3X1.25X2.0 |
|
Machine weight (kg) |
5300 | |
|
|
|
