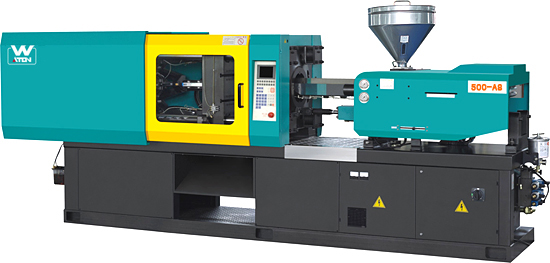

| Product Name:WTI500 [Order It!] |
| Category:Injection Machine |
| Pic: |
 |
WTI90 WTI130 WTI160 WTI210 WTI250
WTI300 WTI320 WTI400 WTI500 WTI650 |
| About This Product: |
|
WTI500energy-saving machine |
|
DESCRIPTION |
WTI500A8 |
|
International recognized model |
2856/500 |
|
Screw model |
A |
B |
C |
|
Shot volume(cm3) |
1590 |
2042 |
2550 |
|
Shot weight (g)ps |
1494 |
1919 |
2397 |
|
52.8 |
67.2 |
68.9 |
|
Screw diameter(mm) |
75 |
85 |
95 |
|
Injection pressure(mpa) |
204 |
159 |
127 |
|
Screw L:D ratio |
21:1 |
21:1 |
18.7:1 |
|
Screw stroke(mm) |
360 |
|
Screw rotate speed(r/min) |
0-150 |
|
CLAMPING UNIT |
|
Clamping force (kn) |
5000 |
|
Opening stroke(mm) |
780 |
|
Platen size(mm*mm) |
1180*1180 |
|
Space between tie bars (mm*mm) |
830*830 |
|
Moldthickness(Min-Max)(mm) |
300-820 |
|
Platen Mix stroke(mm) |
1600 |
|
Ejection stroke(mm) |
210 |
|
Ejection force(kn) |
111 |
|
POWER UNIT |
|
Hydraulic system pressure(mpa) |
17.5 |
|
Pump motor(kw) |
45 |
|
Heating power(kw) |
30.7 |
35.4 |
35.4 |
|
Number of temp.control |
5+(nozzle) |
|
OTHERS |
|
Cycle time (sec) |
5.2 |
|
Oil tank capacity (L) |
1150 |
|
Machine dimensions(m*m*m) |
8.2*1.85*2.41 |
|
Machine weight (kg) |
22000 | |
|
|
|
