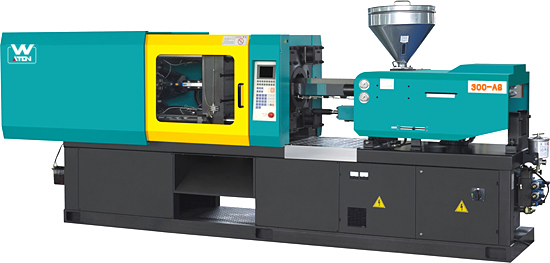

| Product Name:WTI300 [Order It!] |
| Category:Injection Machine |
| Pic: |
 |
WTI90 WTI130 WTI160 WTI210 WTI250
WTI300 WTI320 WTI400 WTI500 WTI650 |
| About This Product: |
|
WTI300energy-saving machine |
|
DESCRIPTION |
WTI300A8 |
|
International recognized model |
1410/300 |
|
Screw model |
A |
B |
C |
|
Shot volume(cm3) |
740 |
920 |
1077 |
|
Shot weight (g)ps |
673 |
845 |
980 |
|
23.5 |
29.5 |
34.2 |
|
Screw diameter(mm) |
58 |
65 |
70 |
|
Injection pressure(mpa) |
190 |
151 |
130 |
|
Screw L:D ratio |
24:1 |
22:1 |
20:1 |
|
Screw stroke(mm) |
300 |
|
Screw rotate speed(r/min) |
0-150 |
|
CLAMPING UNIT |
|
Clamping force (kn) |
3000 |
|
Opening stroke(mm) |
570 |
|
Platen size(mm*mm) |
870X850 |
|
Space between tie bars (mm*mm) |
610X590 |
|
Moldthickness(Min-Max)(mm) |
200-600 |
|
Platen Mix stroke(mm) |
1170 |
|
Ejection stroke(mm) |
160 |
|
Ejection force(kn) |
77 |
|
POWER UNIT |
|
Hydraulic system pressure(mpa) |
17.5 |
|
Pump motor(kw) |
22 |
|
Heating power(kw) |
18 |
|
Number of temp.control |
5+(nozzle) |
|
OTHERS |
|
Cycle time (sec) |
5.0 |
|
Oil tank capacity (L) |
380 |
|
Machine dimensions(m*m*m) |
6.4X1.5X2.18 |
|
Machine weight (kg) |
11000 | |
|
|
|
