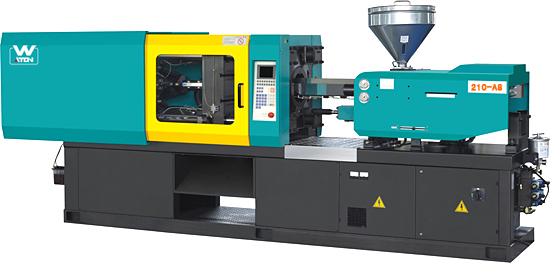

| Product Name:WTI210 [Order It!] |
| Category:Injection Machine |
| Pic: |
 |
WTI90 WTI130 WTI160 WTI210 WTI250
WTI300 WTI320 WTI400 WTI500 WTI650 |
| About This Product: |
|
WTI210energy-saving machine |
|
DESCRIPTION |
WTI210A8 |
|
International recognized model |
830/210 |
|
Screw model |
A |
B |
C |
|
Shot volume(cm3) |
381 |
470 |
569 |
|
Shot weight (g)ps |
347 |
429 |
520 |
|
12.1 |
15 |
18.1 |
|
Screw diameter(mm) |
45 |
50 |
55 |
|
Injection pressure(mpa) |
217 |
176 |
145 |
|
Screw L:D ratio |
22:1 |
20:1 |
18:1 |
|
Screw stroke(mm) |
240 |
|
Screw rotate speed(r/min) |
0-200 |
|
CLAMPING UNIT |
|
Clamping force (kn) |
2100 |
|
Opening stroke(mm) |
480 |
|
Platen size(mm*mm) |
745X745 |
|
Space between tie bars (mm*mm) |
510X510 |
|
Moldthickness(Min-Max)(mm) |
200-550 |
|
Platen Mix stroke(mm) |
1030 |
|
Ejection stroke(mm) |
150 |
|
Ejection force(kn) |
67 |
|
POWER UNIT |
|
Hydraulic system pressure(mpa) |
17.5 |
|
Pump motor(kw) |
18.5 |
|
Heating power(kw) |
13.1 |
|
Number of temp.control |
4+(nozzle) |
|
OTHERS |
|
Cycle time (sec) |
4.5 |
|
Oil tank capacity (L) |
310 |
|
Machine dimensions(m*m*m) |
5.5X1.32X2.1 |
|
Machine weight (kg) |
6800 | |
|
|
|
