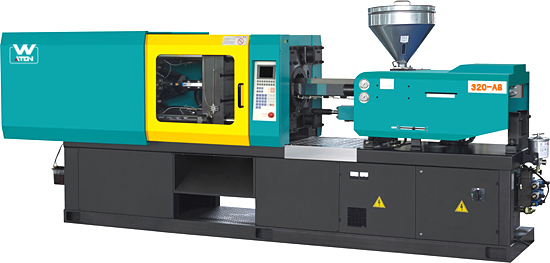

| Product Name:WTI320 [Order It!] |
| Category:Injection Machine |
| Pic: |
 |
WTI90 WTI130 WTI160 WTI210 WTI250
WTI300 WTI320 WTI400 WTI500 WTI650 |
| About This Product: |
|
WTI320energy-saving machine |
|
DESCRIPTION |
WTI320A8 |
|
International recognized model |
1909/320 |
|
Screw model |
A |
B |
C |
|
Shot volume(cm3) |
1062 |
1231 |
1414 |
|
Shot weight (g)ps |
966 |
1120 |
1286 |
|
33.7 |
39.2 |
44.9 |
|
Screw diameter(mm) |
66 |
70 |
75 |
|
Injection pressure(mpa) |
175 |
152 |
133 |
|
Screw L:D ratio |
22.6:1 |
21:1 |
19.6:1 |
|
Screw stroke(mm) |
320 |
|
Screw rotate speed(r/min) |
0-150 |
|
CLAMPING UNIT |
|
Clamping force (kn) |
3200 |
|
Opening stroke(mm) |
615 |
|
Platen size(mm*mm) |
945X945 |
|
Space between tie bars (mm*mm) |
660*660 |
|
Moldthickness(Min-Max)(mm) |
250-670 |
|
Platen Mix stroke(mm) |
1285 |
|
Ejection stroke(mm) |
160 |
|
Ejection force(kn) |
77 |
|
POWER UNIT |
|
Hydraulic system pressure(mpa) |
17.5 |
|
Pump motor(kw) |
30 |
|
Heating power(kw) |
21.5 |
|
Number of temp.control |
5+(nozzle) |
|
OTHERS |
|
Cycle time (sec) |
5.0 |
|
Oil tank capacity (L) |
500 |
|
Machine dimensions(m*m*m) |
6.8*1.58*2.25 |
|
Machine weight (kg) |
13000 | |
|
|
|
